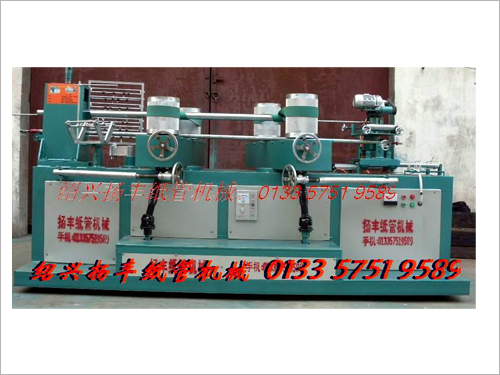

150A卷管机 - 副本.png



The host power; 15 kw voltage; 380 v three phase four wire
Volume tube diameter; 20-150 mm Volume tube thickness; 1-15 mm
Volume tube speed; Speed control; 5-20 m/min. Computer frequency control of motor speed
The paper layer; Level 3-25, volume tube; Compound spiral paper tube
Drive form; Double speed reducer drive. The gluing way; Double-sided glue
Cutting way; Servo nc trace cutting cutting accuracy; , > < 1.5 mm
Main motor adopts, zhejiang yongfa, control electronics, zhejiang chint. Host drive inverter, shenzhen easy to drive, operating CNC system; Wuhan coldwell touch screen, PLC servo.
The operator; 1-2 people. The dimensions; Long; 360 cm wide; 160 cm, 150 cm tall
The price; 118000 yuan. ? factory tax-inclusive price, shipping and packaging are extra ?
Contains; Volume tube mould a few belts two. Random use tools. On the plastic frame, on paper. Paper tube bracket, to take over the frame and so on. Other products customized according to customer's requirements.
This machine is suitable for production of paper tube specifications; Chemical fiber, food packaging, plastic film, textiles, printing and dyeing, industrial paper tube, etc. The machine USES cardan drive, 4 wheel drive, four reducer, speed smooth, low noise, fast speed, strong volume tube and so on.
